Aidite (Qinhuangdao) Technology Co., Ltd. is one of the leading manufacturers and suppliers of carbon sintering furnace in China. With abundant experience, we warmly welcome you to buy bulk carbon sintering furnace at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Key Benefits

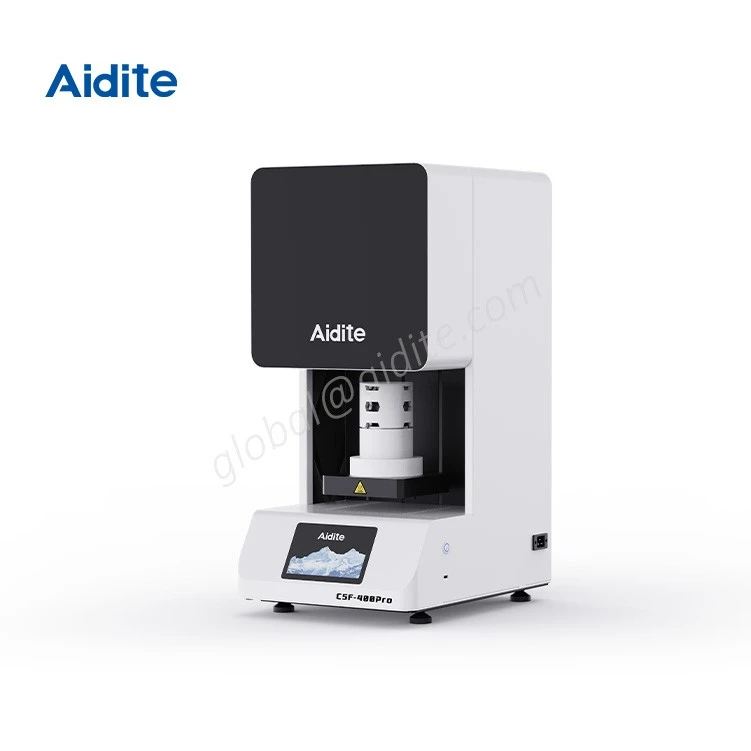

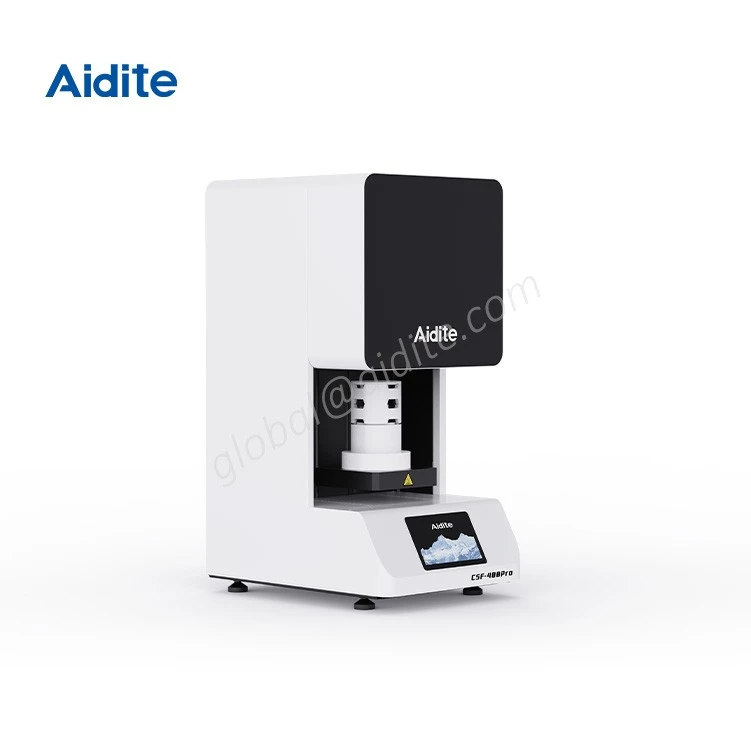

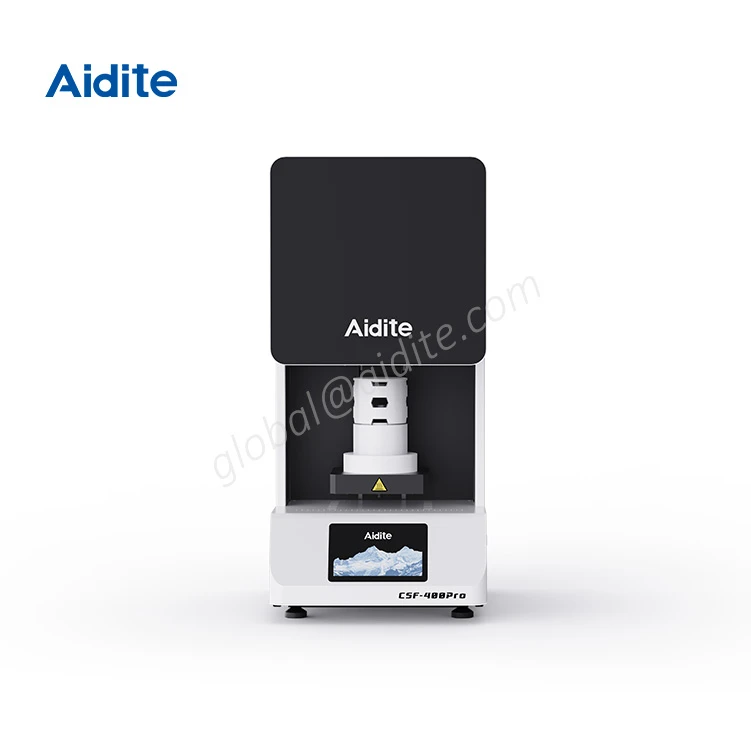

Premium Silicon Carbon Rods for Extended Service Life At the core of the CSF-400 Pro are 4 premium imported, new-type silicon carbon rods. This advanced heating element configuration ensures exceptionally stable, high sintering temperatures and uniform heat distribution. It minimizes tool degradation and maintenance costs, offering an incredibly reliable and extended service life.
High-Capacity Double-Layer Sintering (Up to 60 Units) Maximize your laboratory's daily throughput. The unique, highly optimized double-layer crucible design allows you to stack and sinter up to 60 single crowns simultaneously in a single cycle. It is the ultimate high-capacity solution for busy labs looking to scale production effortlessly.
Rapid Sintering Capability (6.7 Hours to Completion) Time is money in modern digital dental workflows. The CSF-400 Pro is fully compatible with Aidite's proprietary Aizir Flash long-span material. Together, they unlock ultra-fast processing, achieving complete tooth removal and final sintering in as little as 6.7 hours without compromising material translucency or strength.
Advanced 7-Inch Touchscreen with Intelligent UI Minimize your staff's learning curve. The furnace is equipped with a vibrant 7-inch touchscreen preloaded with Aidite's advanced, user-centric UI program. It integrates step-by-step operation guidance, proactive fault alarms, and interactive maintenance tutorials, ensuring error-free operation from day one.
Industrial Lifting Mechanism & High-Quality Cooling System Engineered with a robust, smooth-moving lifting mechanism that ensures stable tray elevator action without vibrating delicate pre-sintered restorations. Complemented by a high-quality cooling system, the furnace guarantees fast, controlled cooling cycles that safeguard material integrity and speed up turnaround times.
No Leveling Required & High Sealing Precision Designed for absolute convenience and reliability. The CSF-400 Pro arrives highly sealed and requires no tedious manual leveling, preventing thermal leakage and protecting the firing chamber from external atmospheric interference.
Versatile Material Compatibility & Custom Sintering Curves Adapt to any workflow. The furnace accommodates various sinterable materials and offers ultimate program flexibility. It features 10 pre-set custom sintering curves along with 2 fully user-defined programs, giving technicians total control over their thermal recipes.
Parameter
|
Model |
CSF-400Pro |
|
Chamber |
Φ110 X H110mm |
|
Dimension |
516X385X816mm |
|
Net weight |
77.5kg |
|
Power supply |
220-240V, 50/60Hz, 16A |
|
Rated power |
3.5KW |
|
Sintering capacity |
60 single crowns |
|
Number of curves |
Preset 10/ User-defined 2 |
|
Temperature range |
Room temperature -1560℃ |
|
Temperature accuracy |
≤±1℃ |
|
Thermocouple |
Type B |
|
Heating element |
Silicon carbon rod |
|
Heating rate |
≤30℃/min |
|
Chamber material |
Corundum mullite |
|
Crucible material |
Corundum |
Why Choose the Aidite CSF-400 Pro?
The CSF-400 Pro is more than just a heating chamber-it is an efficiency multiplier for your dental lab. By uniting the thermal stability of premium silicon carbon rods with the massive capacity of a 60-unit double-layer layout, Aidite delivers a reliable, high-yield, and low-maintenance workhorse. Streamline your turnaround times down to 6.7 hours and experience premium zirconia sintering at its finest.
